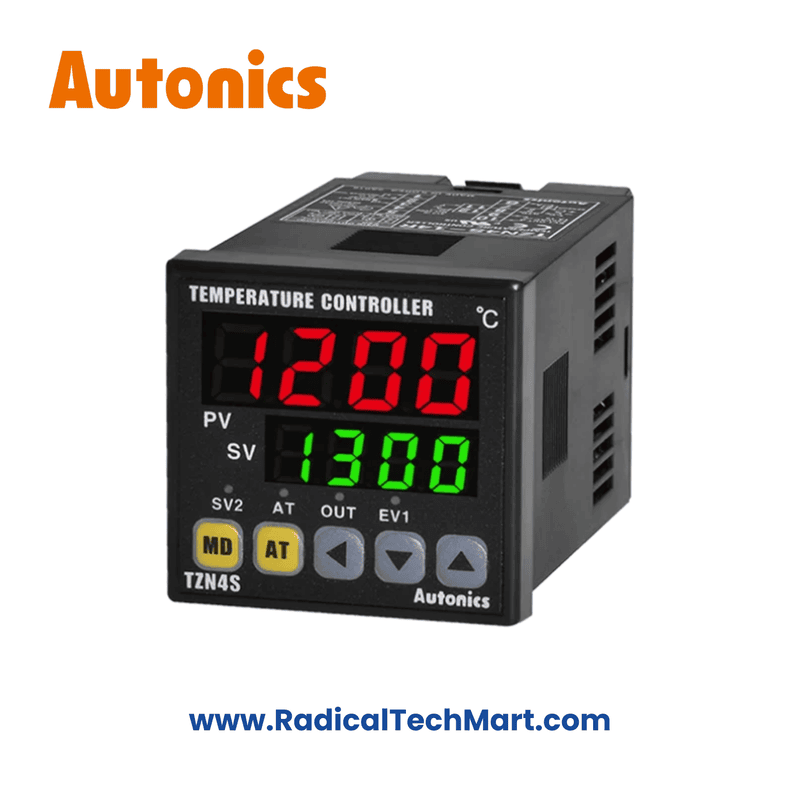

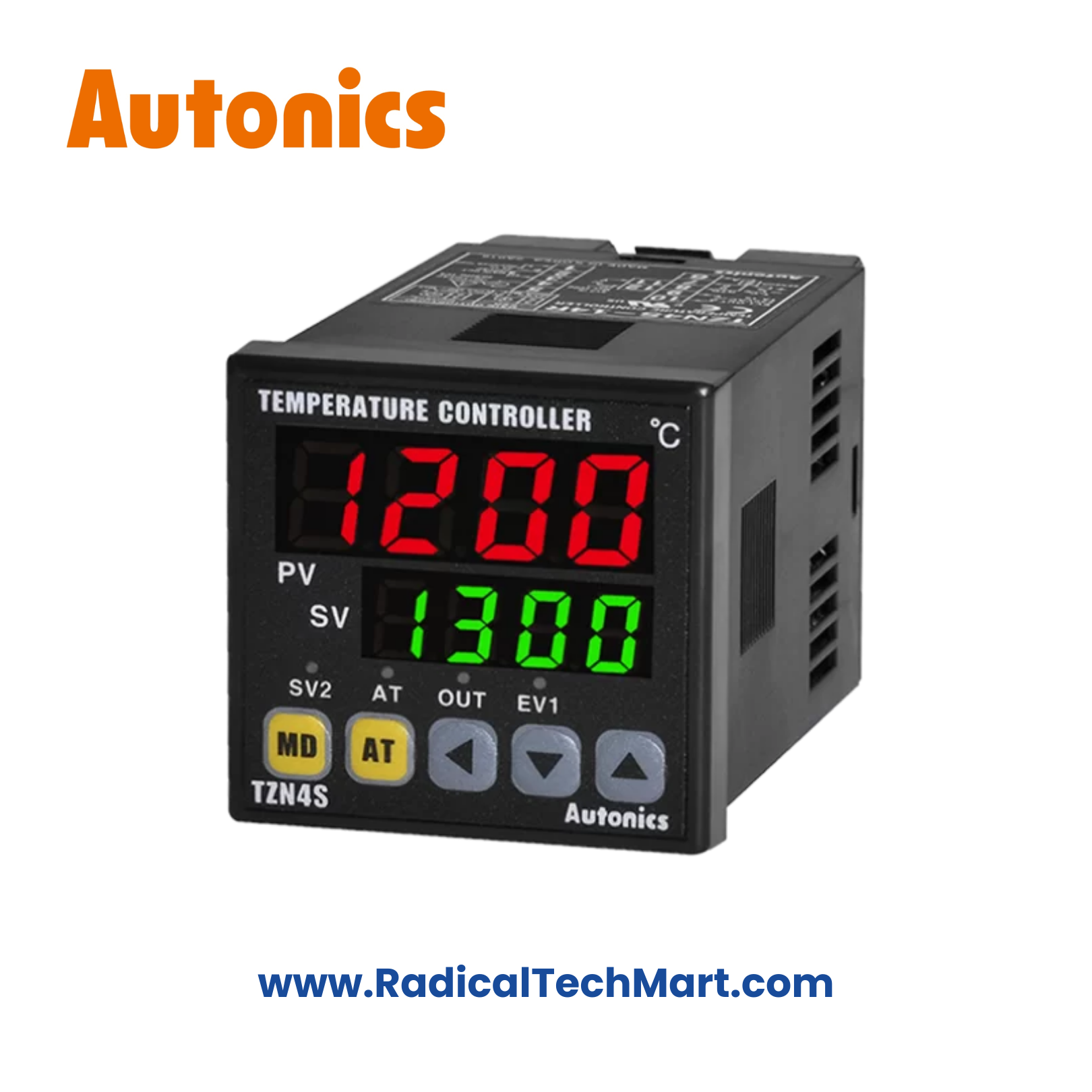

TZN4S Autonics Temperature Controller
Autonics TZN4S Dual PID Temperature Controller – 48×48 mm, Universal Input
Autonics TZN4S is a 48×48 mm digital PID temperature controller with dual-speed PID control and high accuracy ±0.3% FS.
Supports thermocouple, RTD, and analog inputs, suitable for precise industrial temperature control.
Customize
Share :
The Autonics TZN4S is a panel-mounted digital PID temperature controller designed for high-precision temperature control in industrial processes. It features dual-speed PID control, enabling fast response during warm-up and stable control with minimal overshoot during steady operation. With universal input support, high display accuracy, and optional alarm, communication, and 4–20 mA retransmission, it is ideal for OEMs, panel builders, and process industries.
Key Features
Dual-speed PID control (high-speed & low-speed modes)
High display accuracy: ±0.3% of full scale
Universal input (13 types) – TC, RTD & analog
ON/OFF, P, PI, PD, PID, PIDF, PIDS control modes
2-step auto-tuning function
Optional event alarms, RS485 communication, PV retransmission (4–20 mA)
Compact 48 × 48 mm DIN size
Clear dual 7-segment LED display (PV/SV)
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TZN4S |
| Series | TZ / TZN Series |
| Size | 48 × 48 mm (DIN) |
| Power Supply | 100–240 VAC, 50/60 Hz ±10% |
| Power Consumption | ≤ 5 VA |
| Sampling Period | 500 ms |
| Input Types | Thermocouple, RTD, Analog (0–10 V, 1–5 V, 4–20 mA) |
| Display Accuracy | ±0.3% FS or ±3 °C |
| Control Output | Relay / SSR drive / 4–20 mA (model dependent) |
| Control Modes | ON/OFF, P, PI, PD, PID, PIDF, PIDS |
| Alarm Outputs | Event alarm, sensor break, loop break |
| PV Transmission | DC 4–20 mA (optional) |
| Communication | RS485 (optional) |
| Display Type | Dual 7-segment LED (Red/Green) |
| Operating Temp. | −10 to +50 °C |
| Storage Temp. | −20 to +60 °C |
| Ambient Humidity | 35–85% RH |
| Protection | Panel-mounted |
| Memory Retention | Approx. 10 years |
Applications
Industrial ovens & furnaces
Plastic & injection molding machines
Packaging machinery
Heaters & hot air generators
Food processing equipment
Chemical & pharmaceutical processes
What’s in the Box
1 × Autonics TZN4S Temperature Controller
2 × Panel mounting brackets
Instruction manual
Unit identification sticker
FAQ
Q1. What sensor inputs does TZN4S support?
Thermocouples, RTD (Pt100), and analog inputs (0–10 V, 1–5 V, 4–20 mA).
Q2. Does TZN4S support PID control?
Yes. It supports ON/OFF, P, PI, PD, PID, PIDF, and PIDS control.
Q3. Can it communicate with PLC or SCADA?
Yes, with optional RS485 communication.
Q4. Is 4–20 mA output available?
Yes, as an optional PV retransmission output.
Q5. What is the panel cut-out size?
Approximately 45 × 45 mm.
